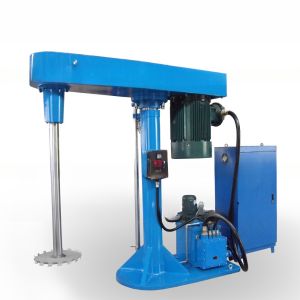

Ex 30kw High Speed Stirrer Manufacturers High Speed Disperser Machine

Ex 30kw High Shear Speed Paint Mixer Machine with Ss304 Dispersing Disc Material

Product Description:

DEGOLD High Speed Disperser for paint industry

DEGOLD FS series high speed disperser is a kind of machine which is used for stirring, mixing, dissolving and dispersing the materials in liquid and powder solid. This series of agitators can be easily operated with hydraulic elevation and rotation frame.

DEGOLD FS series dispersers are adopting a compacted design which consists of lifting device, driving device, mixing device, hydraulic device etc.

The motor has the function of CV lifting; The shaft rotation speed can be changed according to customers' needs. The peripheral velocity will be 17m/s.

Principle of Operation:

The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely.

We produce the high speed dispersers with following kinds motor powers:

5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, 55kW, 75kW.

Application:
30kw High Shear Speed Paint Mixer Machine

Technical Data:

		FS5.5	FS7.5	FS11	FS15	FS18.5	FS22	FS30	FS37	FS45	FS55	FS75
Main motor power (kW)		5.5	7.5	11	15	18.5	22	30	37	45	55	75
Dispersion shaft speed (r/min)		0-1500						0-1200			0-1000
Height of shaft lifting (mm)		1200						1400			1600
Estimated processing batch≤L(we take water as example)		350	400	450	500	700	1000	1500	2000	2500	3000	4000
Dispersion discs diameter (mm)	L	1655			2150			2120			2500
	W	570			800			900			1000
	H	1880			1960			2200			2500
Net weight (kg)		1140	1155	1165	1830	1850	1885	2000	2055	2085	2310	2425

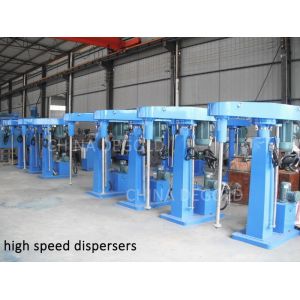

Production Line:
30kw High Shear Speed Paint Mixer Machine

Exhibitions:
30kw High Shear Speed Paint Mixer Machine
