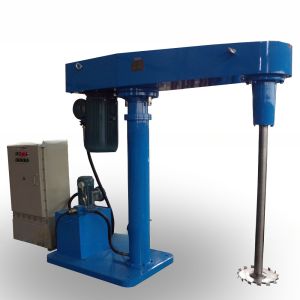

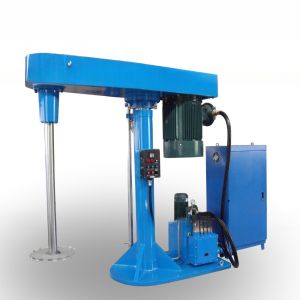

Customized High Speed Disperser Solvent Based Paint Disperser

Customized High Speed Disperser with Lifting Cover Hydraulic Lifting Solvent Based PaintSolvent Based Paint High Speed Disperser with Lifting Cover (Hydraulic Lifting)
Product Description

DEGOLD High Speed Disperser for paint industry

DEGOLD FS series high speed disperser is a kind of machine which is used for stirring, mixing, dissolving and dispersing the materials in liquid and powder solid. This series of agitators can be easily operated with hydraulic elevation and rotation frame.

DEGOLD FS series dispersers are adopting a compacted design which consists of lifting device, driving device, mixing device, hydraulic device etc.

The motor has the function of CV lifting; The shaft rotation speed can be changed according to customers' needs. The peripheral velocity will be 17m/s.

Principle of Operation:

The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely.

We produce the high speed dispersers with following kinds motor powers:
5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, 55kW, 75kW.

Application


Solvent Based Paint High Speed Disperser with Lifting Cover (Hydraulic Lifting)

Technical Data

FS5.5FS7.5FS11FS15FS18.5FS22FS30FS37FS45FS55FS75
Main motor power (kW)5.57.5111518.5223037455575
Dispersion shaft rotary speeds (r/min)0~15000~12000~1000
Dispersion shaft lifting height (mm)120014001500
Estimated batch350400450500700100015002000250030004000

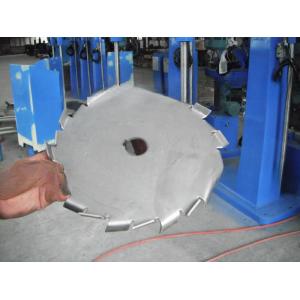

Dispersion discs diameter (mm)200250250250300300350400450500550
DimensionL1655215021202500
W5708009001000
H1880196022002500
Net weight11401155116518301850188520002055208523102425

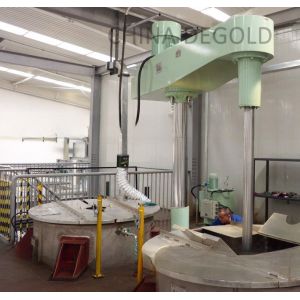

Production Line


Solvent Based Paint High Speed Disperser with Lifting Cover (Hydraulic Lifting)

Our Services

We can send out one or two technicians to buyer's location for providing installation and training service.

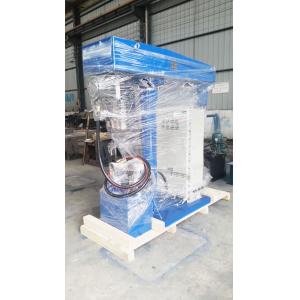

Packaging & Shipping

Fumigation wooden box.

Exhibitions


Solvent Based Paint High Speed Disperser with Lifting Cover (Hydraulic Lifting)
